The flexibility of the AIM inertial measurement system together with advanced wave analysis algorithms creates a wave buoy sensor suitable for a wide range of buoy applications;

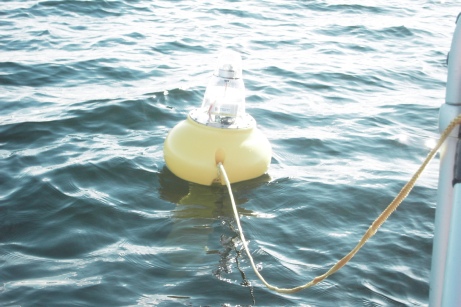

• Shallow water buoys with limited power availability
• Larger deep water multi sensor meteorological buoys

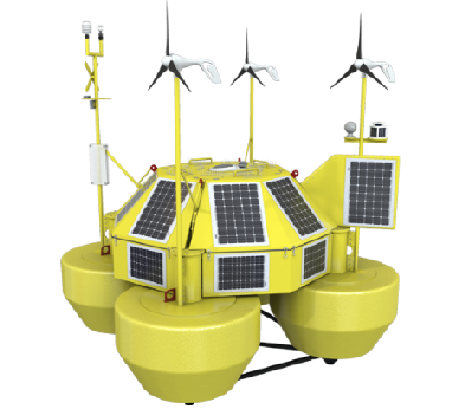

• Very large multi-role buoys

AIM DIRECTIONAL WAVE BUOY SENSOR

Advanced Wave Buoy Sensor and Firmware

Suitable for small shallow water buoys

Up to large multi sensor multi role deep water buoys

Basics

 A low power field configurable sensor.

 he basic sensor consists of accelerometer, rate gyro, and magnetometer measuring real time 6dof buoy motions and heading.

 Comprehensive wave data analysis options including deterministic (cycle by cycle) and spectral/frequency analysis.

 Configurable analysis parameters, for example offset sensor mounting.

 Flexible output options include all the standard AIM output message facilities for raw and reduced data, plus specialist messages for output of wave parameters.

 Support for AXYS $TSP message and emulation of selected AXYS commands.

Options

128GByte SD card data logger.

Onboard Real Time Clock

External GPS for analysis enhancement.

External GPS for latitude/longitude/time

Remote mounting of magnetometer away from magnetic structure and/or systems.

External flux gate compass.

External meteorological, wind, and current sensors with onboard processing.

Packaging from full environmental protection for exposed mounting to OEM configurations.
